Large Analog Proportional Joystick (choice of handle)

Direct Replacement for Ultimate Arcade 1 and 2 or for custom builds.

Available as a Large Analog Joystick built to plug into

• Microsoft Adaptive Game Controller
• Hori Nintendo Switch Adaptive Game Controller

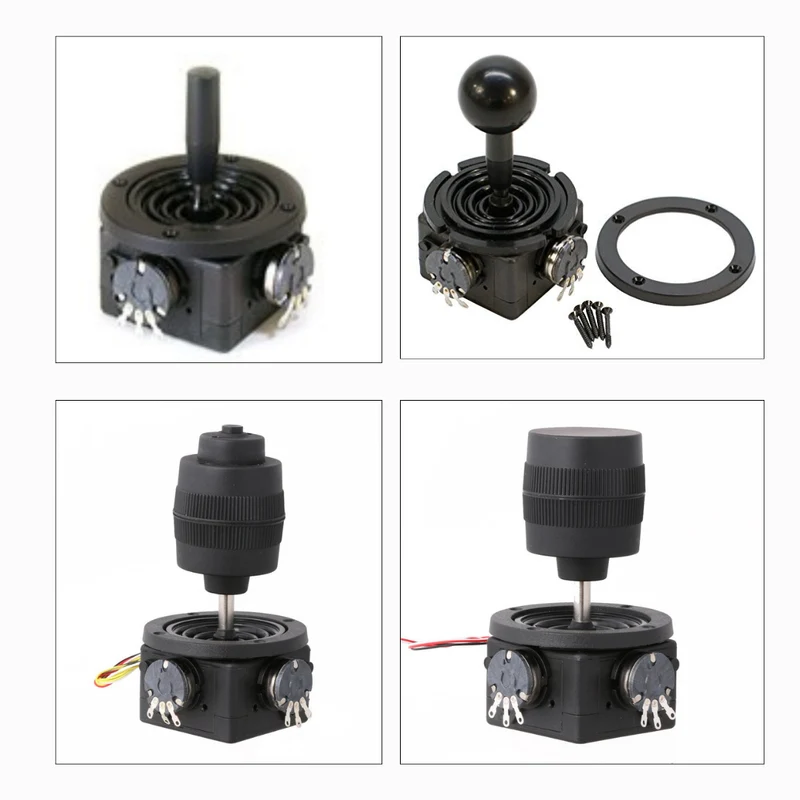

Handle Shape Options

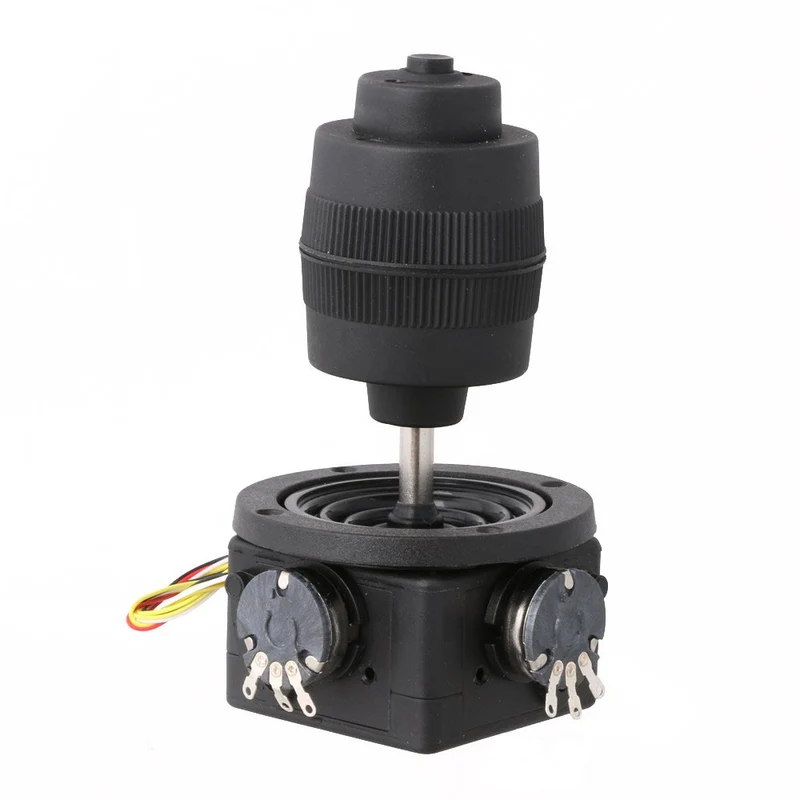

• Barrel with Top Push button
  Handle works particularly well for quadriplegics with paralyzed fingers to rest center of palm over the barrel. Push down with palm to activate button that can be assigned to be any button or simply not connected.

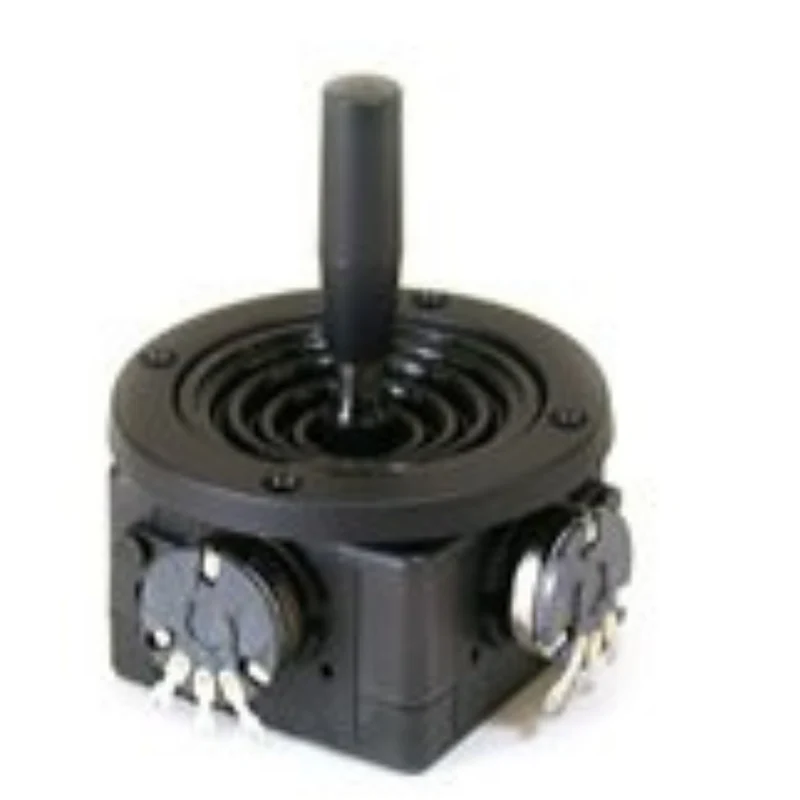

• Straight Short Shaft

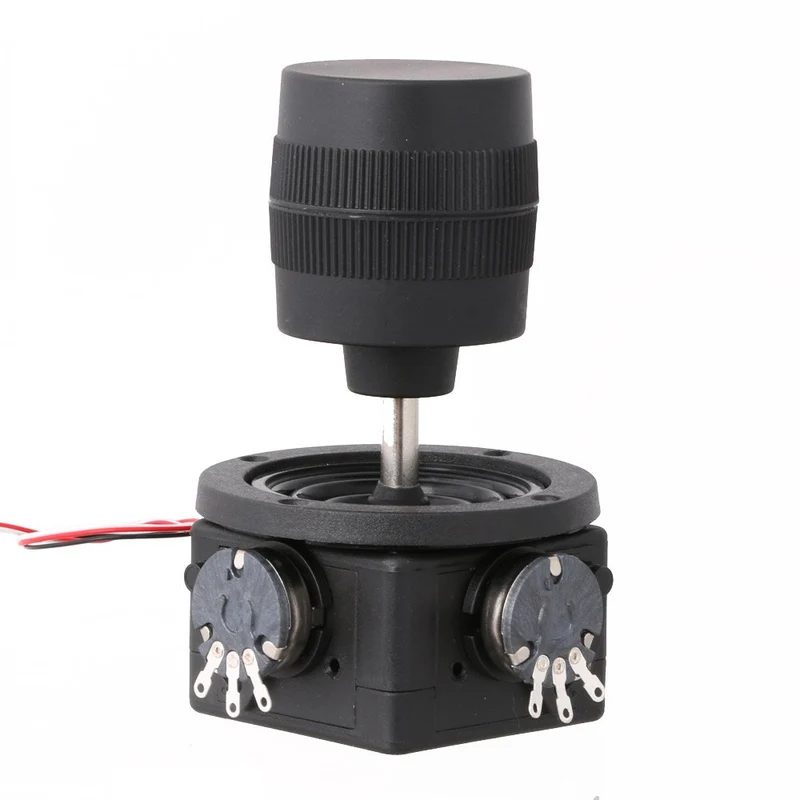

• T-Bar Handle

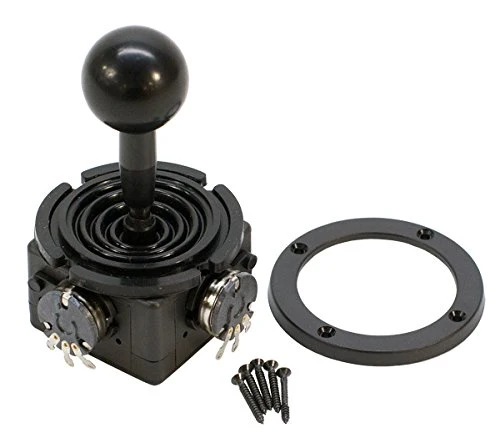

• Ball on Tall Shaft

DETAILED SPECIFICATIONS

• Resistance Value: 5K Resistance
• Tolerance: +/-20%
• Independent Linearity: +/-1%
• Resolution: Essentially Infinite
• Temperature Coefficient Resistance): +/-400 ppm/ C°
• Output Smoothness: 0.5% Maximum X/Y Axis
• Electricity Corner: +/-25°
• Z Axis Electricity Corner: N/A
• Insulation Resistance: 50M @ 500VDC 60 sec.
• Restoration Error Rate: +/- 0.03K
• Prolepsis Mechanical Life-cycle: 500,000 cycles
• Operating Temperature Range: -10° to 80° C
• Operate Torque: 90gf (X), 250gf (Y)
